Specs

• Ice production: 33 kg per 24 hours
• Storage capacity: 16 kg
• Ice cube size: 18 g; cubes measure 35 × 31 × 31 mm
• Refrigerant: R290
• Power: 510 W
• Voltage: 230 V
• Weight: 38 kg
• Dimensions: 500 × 580 × 690 mm (W × D × H)

Features

• Air-cooled design reduces water usage and simplifies installation in venues with limited water supply

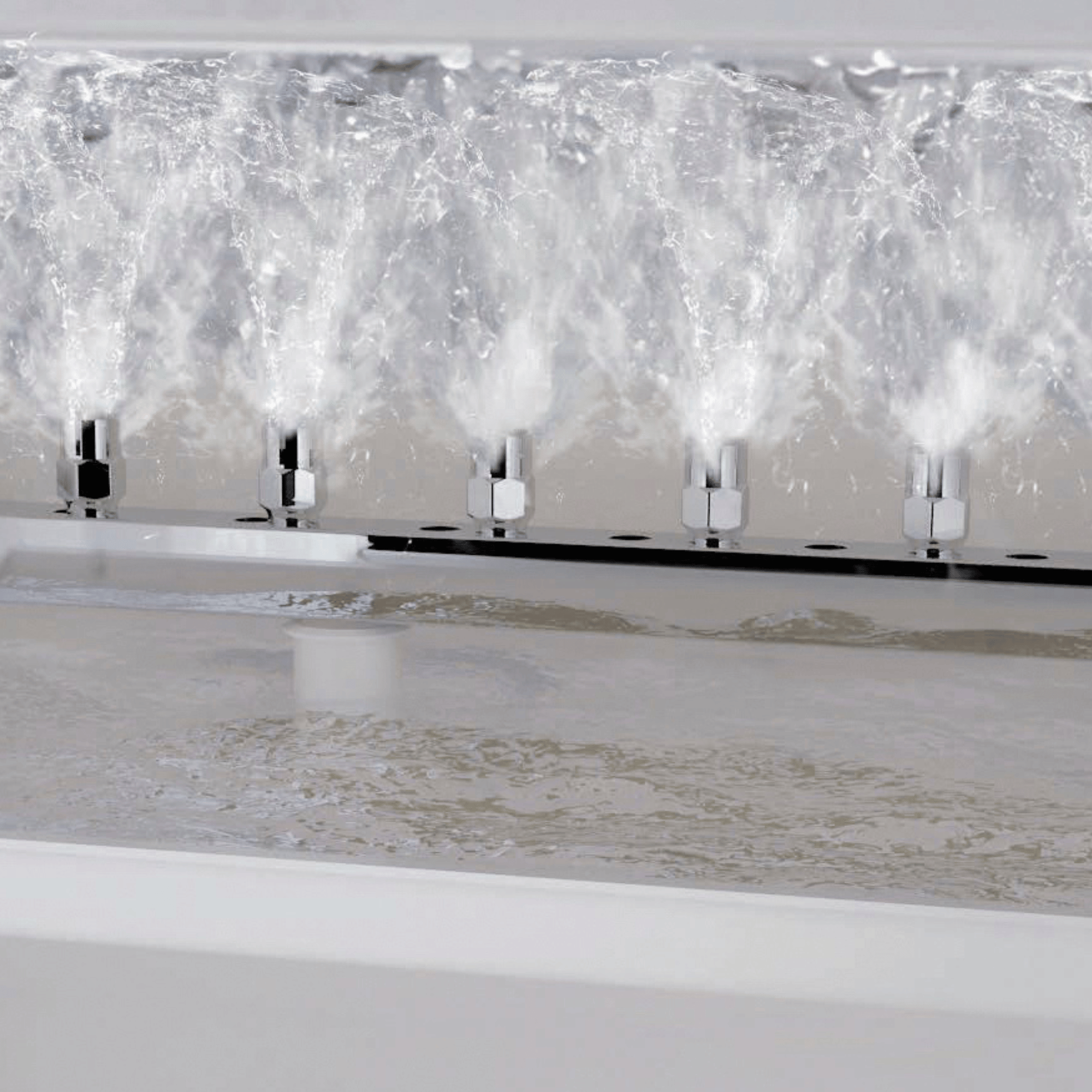

• Crystal-clear ice with high-pressure spray and metal spout for bright, transparent cubes
• Quiet operation via soundproofed construction, magnetic pump, and modern motor

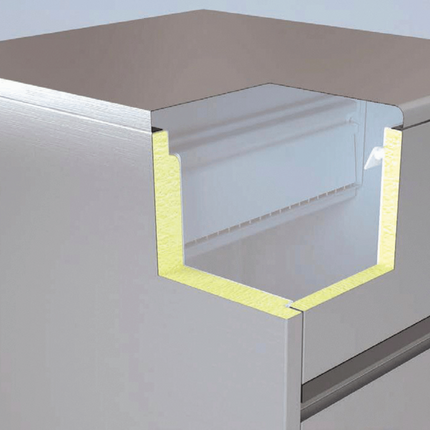

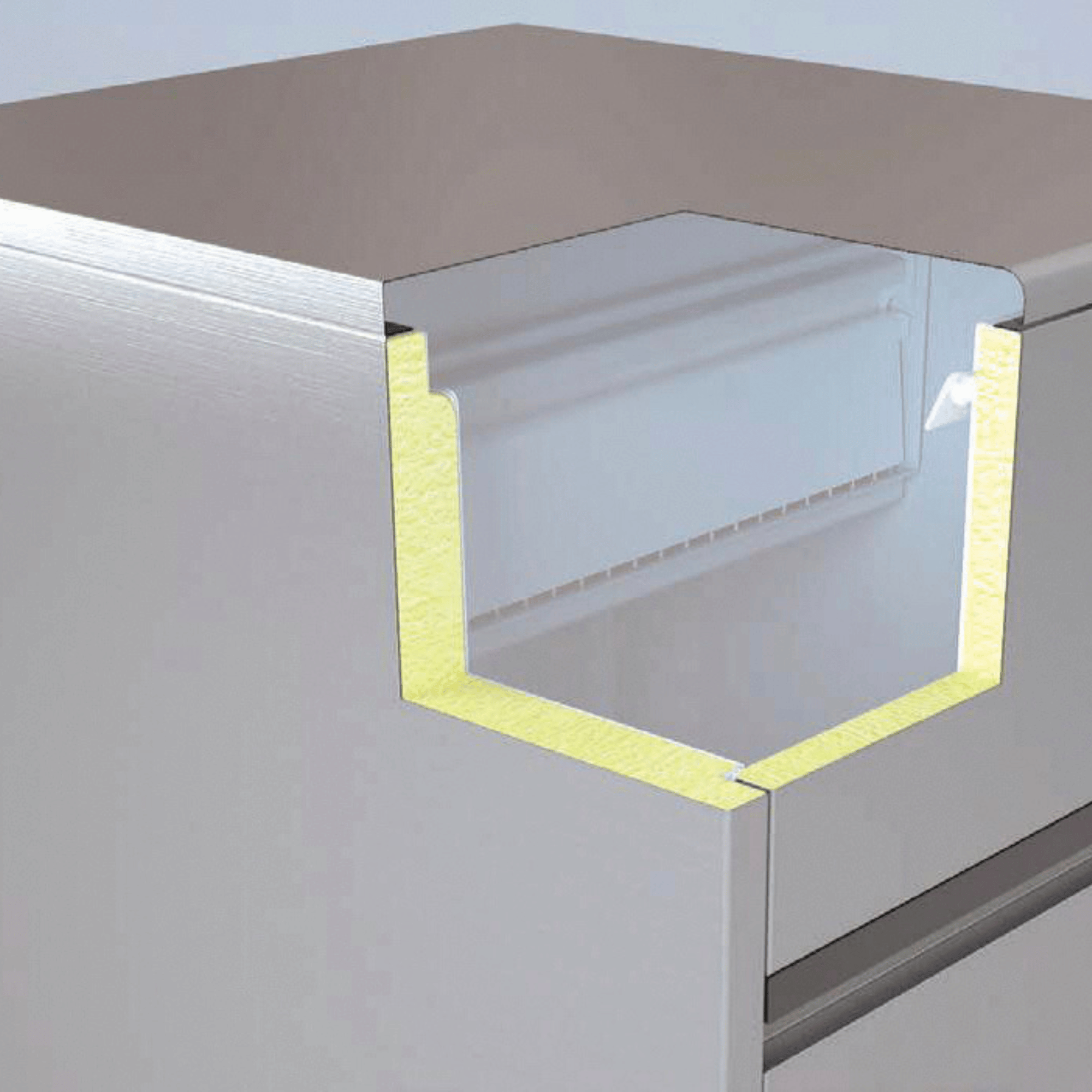

• Hygienic design: antibacterial ice tank and production chamber; antibacterial copper matrix minimizes mineral buildup

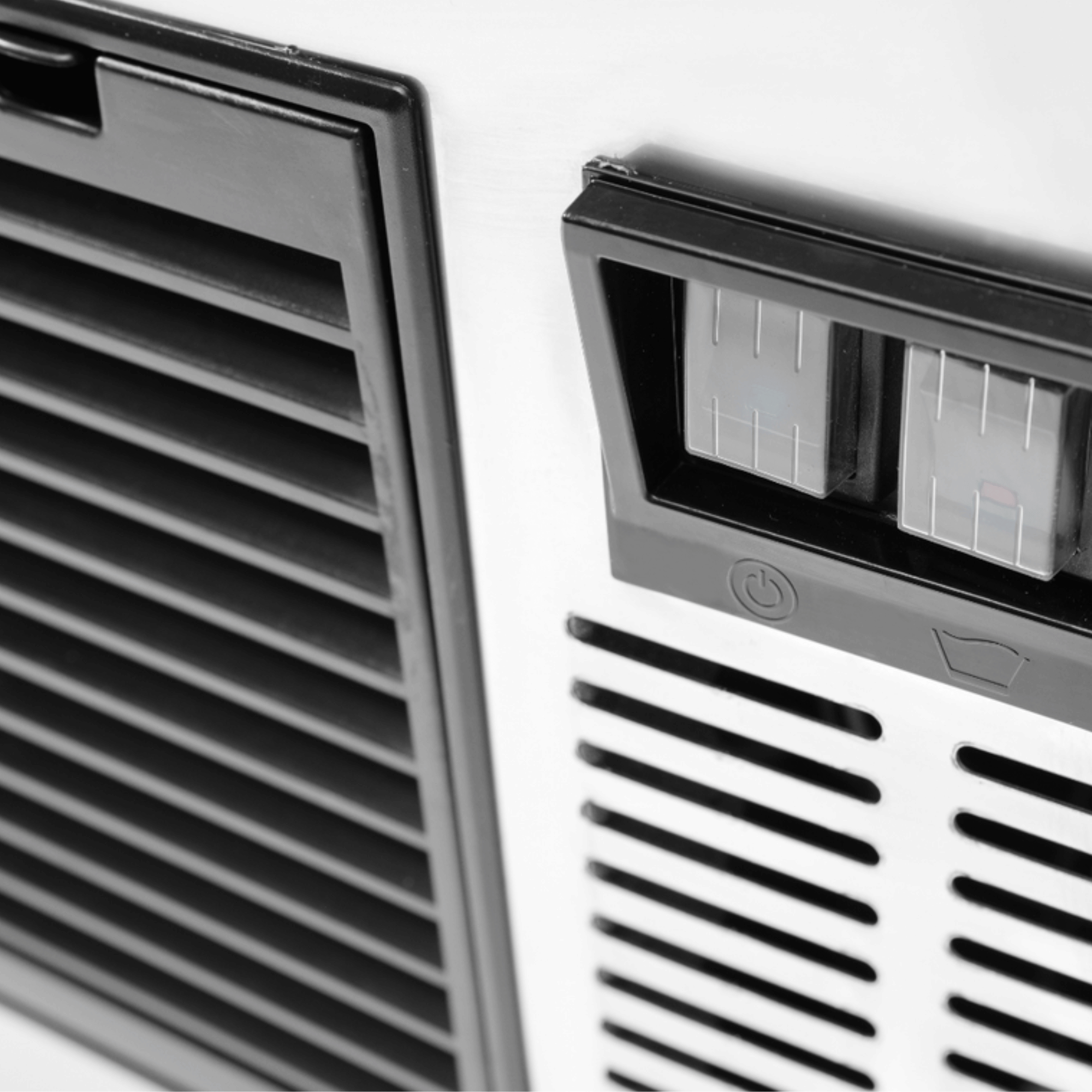

• Front-panel washing program for routine disinfection; seamless tank interior for easy cleaning
• Bar-friendly installation: shallow depth up to 600 mm; compact height supports under-counter/backbar placement
• Reliability features: multi-stage testing, 100% tightness checks, and quality assurance on every unit

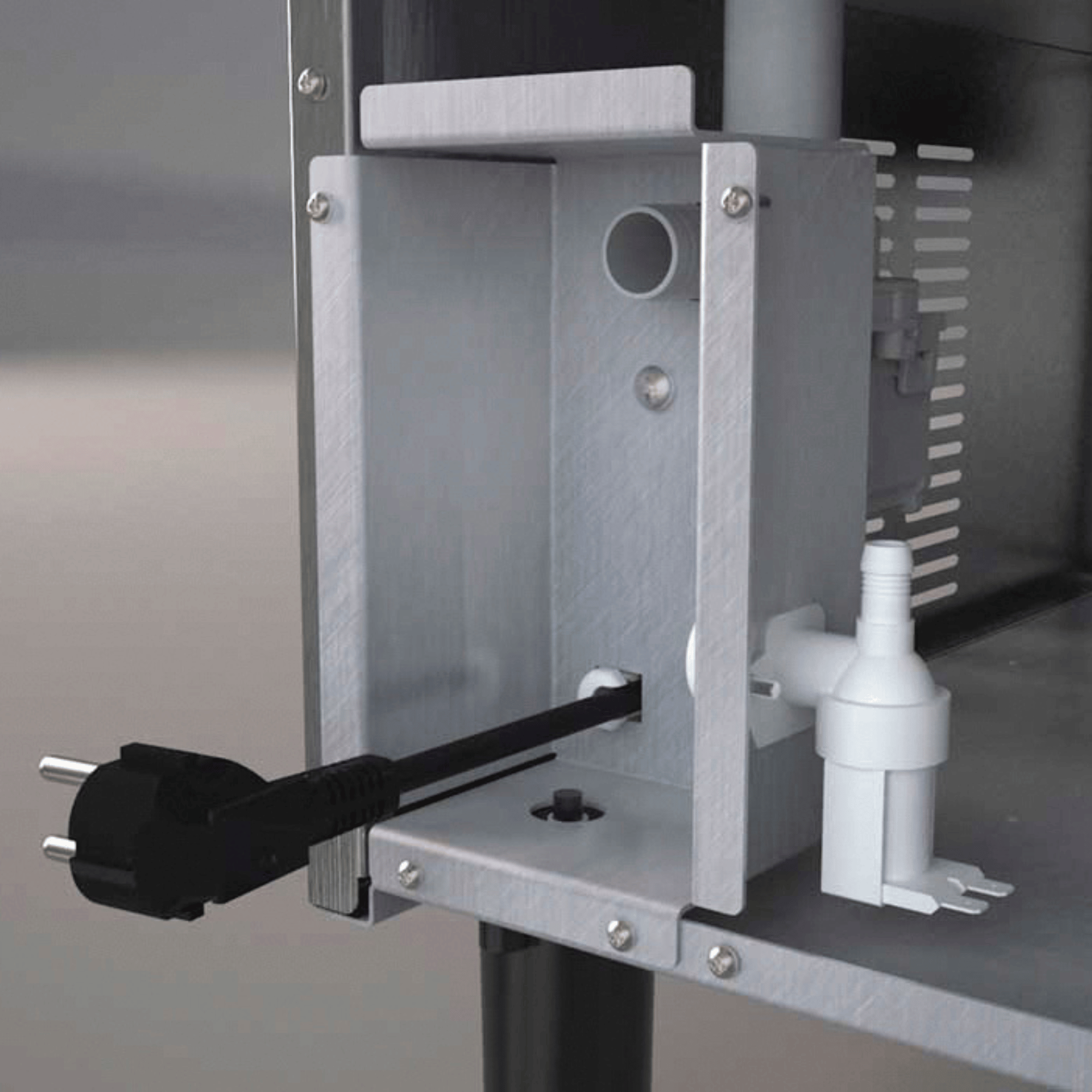

• Drain and tray versatility: pump-assisted ice tray drain allows flexible tray placement regardless of water outlet height
• Tropical class capability enables dependable operation in warm service environments
• Ideal as a backbone for beverage programs and display cooling with consistent ice quality

Compatibility

• Electrical supply: 230 V
• Refrigerant: R290 (eco-friendly option)
• Designed for high-demand venues such as bars, restaurants, hotels, and supermarkets
• Operational in warm environments (tropical class) to support peak service without performance loss

Physical

• Dimensions: 500 × 580 × 690 mm (W × D × H)
• Net weight: 38 kg
• Storage capacity: 16 kg
• Bar/under-counter suitability: installation depth up to 600 mm; compact height supports under-counter placement
• Ice production: 33 kg/24 h with 18 g cubes (35 × 31 × 31 mm)

Certifications

• Certifications: Not specified in the provided data

Warranty

• Overall warranty: 2 years
• Evaporator warranty: 5 years
• Premium components from reputable brands included for long-term reliability
